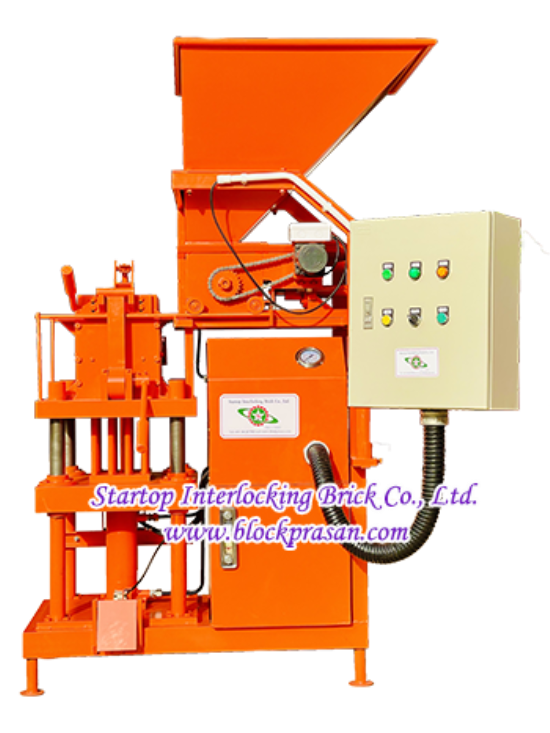

Model: 25A2

System: Automatic Hydraulic​ press machine - Fully auto


Specification:

     - Produce 2 pcs/time

     - Brick size: 12.5x25x10 cm.

     - Electric motor 5.5 HP 3 Phase 380V

     - Machine working speed 700 pcs/hour



<=  Click on it to see a video of a working example.

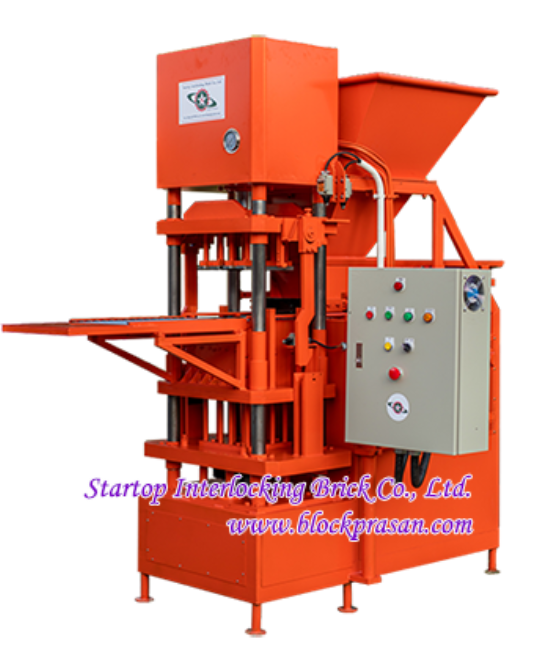

Model: 25SF23
System: Automatic Hydraulic​ press machine - Standard


Specification:

     - Produce 2 pcs/time

     - Brick size: 12.5x25x10 cm.

     - Electric motor 3 HP 1 Phase 220V

     - Feed raw material into the mold automatically by Hydraulic system.

     - Machine working speed 380 pcs/hour













Model: 25SF23-P
System: Automatic Hydraulic​ press machine - Side pattern


Specification:

     - Produce 2 pcs/time

     - Brick size: 12.5x25x10 cm.

     - Electric motor 3 HP 1 Phase 220V

     - Feed raw material into the mold automatically by Hydraulic system.

     - Support to produce Side pattern brick

     - Machine working speed 380 pcs/hour



<=  Click on it to see a video of a working example.



The operation of model 25SF23 similar with model 25SF23P as shown in the Youtube video. Different at the model 25SF23 not support to produce Side pattern brick.

(To produce Half brick and U brick as shown in the youtube video, need to buy more accessories.)
